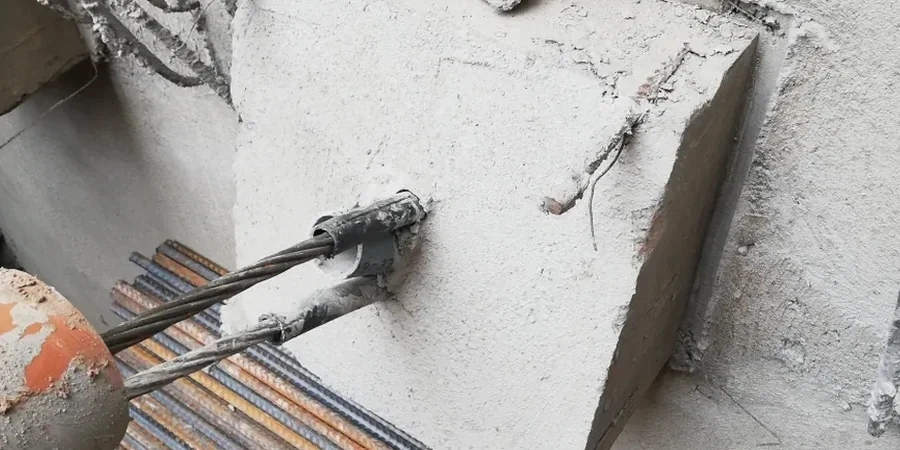

Active and Passive Anchor Systems in Peoria Illinois

With a population nearing 113,000 and a downtown perched on bluffs overlooking the Illinois River, Peoria presents a layered challenge for deep foundation work. The city's average elevation of 509 feet masks a subsurface of glacial till, loess, and interbedded sands that demand precise restraint systems. When a new parking garage or riverfront development requires a vertical cut, standard cantilever walls fall short. Our active and passive anchor designs address the lateral earth pressures specific to the Illinois Basin, using bonded lengths calculated for the stiff silty clays found from the Warehouse District to the East Bluff. We combine site-specific CPT testing data with drained shear strength parameters to size the unbonded length, ensuring the grout body develops its full capacity beyond the failure wedge.

In Peoria's loess, an unmonitored anchor can lose 15% of its lock-off load within 72 hours due to soil relaxation alone.

Our approach and scope

On the bluffs near Bradley University, we routinely encounter loess-derived soils that stand near-vertical during excavation but relax rapidly upon moisture change. This behavior forces a conservative approach to passive anchor systems, where the reaction is generated by the structural element itself rather than relying solely on active jacking. A typical Peoria project might pair a multi-strand active anchor in the upper sand seams with a deeper passive bar anchor socketed into the underlying limestone. The design integrates slope stability analysis for bench cuts during installation and a detailed review of the bond zone grout-to-ground interface. Our approach follows IBC Chapter 18 and ASCE 7-22 for earthquake loading, applying a site coefficient adjusted for the soft clay profiles mapped by the Illinois State Geological Survey. Key technical specifications include:

Strand systems per ASTM A416 Grade 270
Bond length verification via load-extension graphs
Corrosion protection Class II per PTI recommendations
Proof testing to 133% of design load for critical structures

Local geotechnical context

The most common mistake we see with anchor designs in Peoria is treating the bond zone as a uniform cylinder when the local till contains discontinuous sand lenses. Grout loss into these lenses can drop the effective bond diameter by 30% without surface indication. The result is a creeping wall that distorts before anyone catches the problem. Another critical failure mode is neglecting the seasonal fluctuation of the Illinois River level, which saturates the passive zone and reduces the effective stress in the anchor block. We insist on electronic load cells on every row of permanent tiebacks and a performance test that cycles the anchor to 133% of the design lock-off load. For temporary excavation support near the I-74 corridor, the deep excavation monitoring program tracks the load over the first 48 hours to confirm that relaxation has stabilized within the predicted range.

Technical parameters

Parameter	Typical value
Design life (permanent anchors)	75-100 years
Factor of Safety (static)	2.0 for passive, 2.5 for active
Grout compressive strength	4,000 psi minimum at 7 days
Tendon type	ASTM A722 bar or ASTM A416 strand
Load test frequency	5% performance, 100% proof (critical)
Unbonded length	≥ 15 ft or past failure plane + 5 ft
Seismic coefficient (kh)	Per site-specific response spectrum

Related services

Active Tieback Design

We size the tendon, bond length, and anchorage for stressed systems that actively compress the retained soil mass. All designs include a detailed corrosion protection plan for the aggressive silty environment.

Passive Anchor and Deadman Analysis

For sites in the Illinois River floodplain where access limits drilling, we design passive systems using reinforced concrete deadmen or grouted bars that mobilize resistance through displacement.

Proof Testing and Monitoring

We write the test procedure and interpret the load-extension curves for every anchor. Our team runs the field program, comparing the apparent free length to the theoretical value to detect grout necking or debonding.

Relevant standards

IBC 2021 Chapter 18: Soils and Foundations, ASCE 7-22: Minimum Design Loads for Buildings and Other Structures, PTI DC35.1-14: Recommendations for Prestressed Rock and Soil Anchors, ASTM A416: Standard Specification for Low-Relaxation, Seven-Wire Steel Strand, ASTM A722: Standard Specification for High-Strength Steel Bars for Prestressed Concrete

Quick answers

When does a Peoria project require active anchors instead of passive ones?

When the allowable lateral deflection is less than 0.5 inches. Active anchors are jacked to the lock-off load before the wall moves, making them essential for structures adjacent to sensitive foundations like the historic buildings on Main Street.

What is the typical cost range for an anchor system in Peoria, Illinois?

For a permanent, multi-strand active anchor with 60 feet of bonded length, the installed cost typically ranges from US$1,080 to US$3,790 per anchor, depending on access, tendon type, and the corrosion protection class required.

How do you verify the bond strength in Peoria's glacial till?

We run a field bond stress test on a sacrificial anchor, loading it to failure or to 200% of the design load. The bond stress is calculated as the load divided by the bonded surface area, giving us a site-specific ultimate value for final design calibration.

What corrosion protection level is required for permanent anchors in Illinois?

PTI Class II protection is the minimum for permanent anchors. This means a double-corrosion barrier: a corrugated plastic sheath over the full bonded and unbonded length, with the stressing length encased in a grease-filled, factory-applied sheath.

Can you install anchors on a site with high groundwater near the river?

Yes. We often use a hollow-bar anchor system that simultaneously drills and grouts, maintaining positive pressure at the bit to prevent the hole from collapsing in saturated, caving sands common along the Illinois River waterfront.
